vertical rubber cutter/hydraulic rubber bale cutting machine/rubber baler

Name: vertical rubber cutterhydraulic rubber bale cutting machinerubber baler
Brand: Mixer
Price: 3 USD

Cheap vertical rubber cutter/hydraulic rubber bale cutting machine/rubber baler for sale

Power Source : Hydraulic

Condition : New

Cutting-off Force(T) : 8 T

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 5 years

Core Components : PLC, Engine, Motor

Cutting Stroke(mm) : 660X680

Place of Origin : China

Brand Name : Mixer

Model Number : XQ-660

Voltage : 380V

Dimension(L*W*H) : 1000x900x2100mm

Warranty : 1 Year

Key Selling Points : High Safety Level

Power (kW) : 5.5 kW

Weight (KG) : 800 KG

Showroom Location : None

Applicable Industries : Manufacturing Plant

Type : Rubber Cutting Machine

Certificate : CE

Power(W) : 5.5kw

Weight : 800kg

After-sales Service Provided : Video technical support

After Warranty Service : Video technical support

Packaging Details : wooden case package

Port : Shanghai

Supply Ability : 30sets per months

Price : $3,200.00/sets >=1 sets

Certification : CE

MOQ : 1set

Delivery Time : 20-30days

Payment Terms : T/T

Contact Now

Product Description

Rubber bale cutter is one of the raw material processing machines of rubber factory. It's mainly used in cutting the natural rubber or synthetic rubber into easy mixing small blocks to conform the requirements.

XQL-80 single knife Hydraulic Rubber Cutter has compact structure, easy operating, less wearing parts and easy maintenance. It is the essential machine for raw material possessing.

XQL-80 single knife Hydraulic Rubber Cutter is mainly consist of motor, vane pump, magnetic exchange valve, overflow valve, slave RAM, oil pressure gauge pipe, hydro-cylinder support, rubber cutting knife, rack, conveying groove etc. Oil cylinder uses standard hydro-cylinder; Rack use high quality welded steel frame; The rubber cutting knife is made of 9CrSi or T8A, through heat treatment its hardness reaches HRC60. Below the cutting knife is nylon board to protect the knife edge.

Structure Characters
1. All the moving and rotating parts of the cutter are equipped with protective guard and protective cover.
2. This rubber cutter is configured with rollway to assist the worker conveying the rubber to rubber cutter.

3. After cutting rubber, the blade ascend automatically, operation is more continuous and smooth.

4. The blade edge is made of selected special steel, matched with special buffering function of the shim, making the blade hard enough to work longer life.

1)Usage
Rubber cutting machine is one of the raw materials processing equipments, which rubber company often used. It is mainly used to cut natural rubber or synthetic rubber into small pieces to satisfy the requirements.
2)Structure :
Three types: Vertical landing structure, Vertical desktop structure and Horizontal desktop structure.

3)Summary

1. Simple structure, Reasonable design, Convenient operation.
2. This device is single hydraulic rubber cutting, mainly including cutting knife, frame, cylinder, race of raw rubber and hydraulic system.
3. During working, put the raw rubber block below the cutting knife and cut the raw rubber into small PCS suitable for rubber mixing by pressure of hydraulic oil cylinder.
4. Smaller PCS of rubber with smaller resistance of mixing machine which can improve greatly the speed and efficiency of mixing , save power, save labor and reduce energy consumption, but also reduce the damage of mixing equipment and prolong the service life.

Specification

Model	QJ-415	QJ-520	QJ-700	XQ-660	T-600	M-600
Cut size (mm:wxh)	500×450	680×650	750×750	660x680	600x500	640x300
Motor	3HP	7.5HP	7.5HP	7.5HP	5.5 HP	5HP
Cut force	8TON	15TON	15TON	8 Ton	5 Ton	8.5Ton
Dimension (mm:LXWxH)	1800×1300 ×2500	1250×1100 ×2150	1250×2000 ×2600	1800x1200 x2500	2500x1600 x2600	1650x1300 x2000

Detailed Images

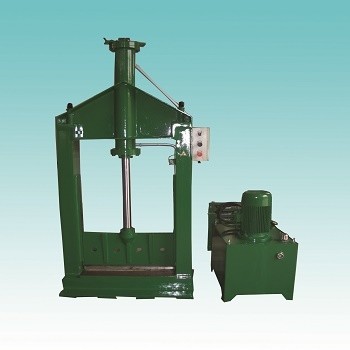

vertical rubber cutter/hydraulic rubber bale cutting machine/rubber baler

Company Information

1. 15 years on rubber and plastic machines manufacturing and exporting.
2. Delivery within 30 days.
3. Safety wood or plywood crates packaging.
4. Full transportation insurance.
5. Sell to 126 countries on 6 continents.

AFTER SERVICES FOR THE PRESS
1. The above machines are all passed inspection of 3~5 hours of full load operation before leaving the factory, you can use it directly thus saving the time of test-run and expense.
2. Warranty: 12 months after installation, if our machines have any problems, you can feel free contact me, we will solve it as soon as possible, and give you the best services.
