Rubber Preforming Machine

Name: Rubber Preforming Machine
Brand: Tokchon
Price: 20 USD

Cheap Rubber Preforming Machine for sale

Place of Origin : Zhejiang, China

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 2 years

Core Components : PLC, Bearing, Motor

Brand Name : Tokchon

Machine Type : rubber preformer

Voltage : 380V/220V/415V/460V

Dimension(L*W*H) : L5000xW1100xH1700mm

Weight : 4000kg

Warranty : 1 year

Power (kW) : 11

Key Selling Points : High-accuracy

Showroom Location : Turkey

Applicable Industries : Manufacturing Plant

After-sales Service Provided : Engineers available to service machinery overseas

Color : Blue

Total Power(W) : 19KW

Marketing Type : Ordinary Product

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : Turkey

Certification : ISO CE

Packaging Details : Plastic film package shipped by a whole container

Port : Ningbo

Supply Ability : 40 Set/Sets per Quarter

Price : $20,000.00 - $50,000.00/sets

Contact Now

Product Description

Rubber Blank Preforming Machine/ Rubber Precision Preformer/Rubber Preformer:

The Rubber preformer is specially designed to rubber blank preparation in high precision cut and high efficiency production.

Adopt PLC control and touch screen operation.Color display guide you to easily perform data entry, password protection.

It can store 1000 kinds of products data,which can be used any time.

Variable frequency motor control the cutter speed infinitely.

Electronic scale with closed feedback,to control weight of rubber blank.

Reliable security,the movements of head ,cutter and plunger piston are interlocking.

Failure will be shown by icon and text.

Vacuum system: before extruding and cutting, using vacuum system to remove the air and gas in barrel, head, inside the compound mixture, thereby enhancing the quality of products under the curing process.

Heating System: The water cycle heating mode, temperature control by a digital thermostat and display. Ensure nose, barrel temperature constant.

Single cylinder design ,barrel is lengthened,improving mechanical stability,easier to clean.

Work Flow

Rubber Preforming Machine

Specification

Barrel ID(mm)	250
Total Power(kw)	26
Max.Cylinder hydraulic pressure (MPa)	18
Oil pump motor(kw)	11
Assistant oil pump motor (kw)	5.5
Cutting motor(kw)	1.5
Vacuum pump motor(kw)	0.75
Heater power(kw)	8
Tot water pump motor (kw)	0.09
Conveying belt motor(kw)	0.18
Max.barrel temperature(℃)	95
Max. Die Diameter(mm)	190
Rubber Blank weight (g)	0.3--2000
Cut Precision in weight(%)	±1.0
One batch capacity(L)	60L
Blade speed (r/min)	35-320 stepless speed adjustment
Dimension(LxWxH)m	5x1.2x1.7
Weight (T)	5

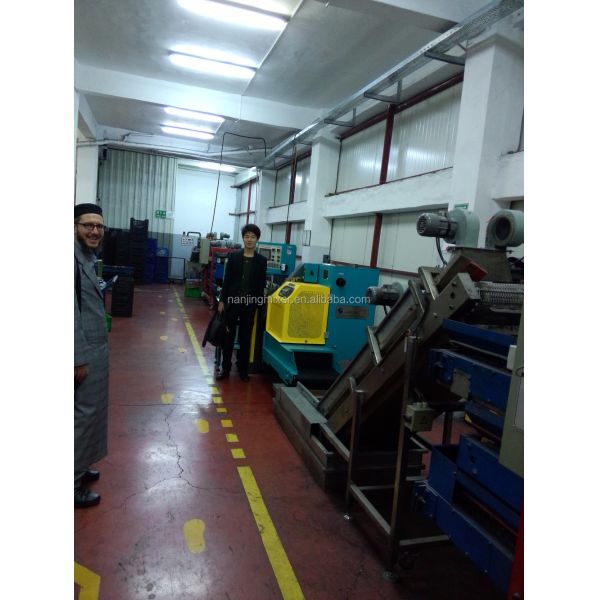

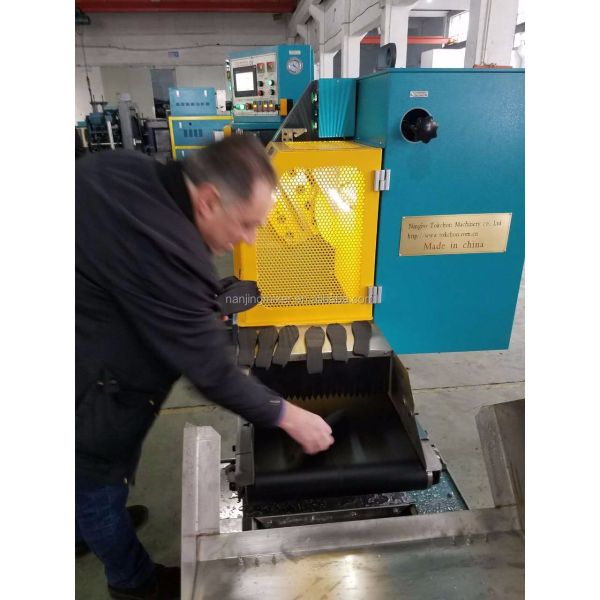

Product Inspection

Rubber Preforming Machine

Packaging & Shipping

Rubber Preforming Machine

After-Sales Service

When machines reach customer's factory, if cutomer require installation service, we will send engineer to come for installation and operation training of the machine,ensuring everything go smooth and custommer's satisfcation are our most important job and best long-term pursuit.

Rubber Preforming Machine

Rubber Preforming Machine Images
